Interlinings Testing Equipments
- GSM Cutter- New Model
- GSM Cutter 38mm,60mm,113mm
- GSM Weighing Balance
- Peel Bond Strength Tester
- Thermostrips - in different ranges
- High Volume Instrument
- Zig-Zag swatch cutting machine -Manual 12"
- Zig-Zag swatch cutting machine -Manual 16"
- Zig-Zag swatch cutting machine -Motorised Model 16"
- Zig-Zag pinking scissors

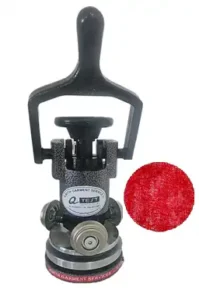

GSM Cutter- New Model
To assess fabric gsm and fabric weight
GSM Cutter 38mm,60mm,113mm
To determine the surface wetting resistance of fabrics

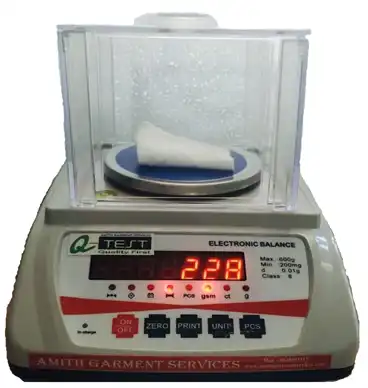

GSM Weighing Balance
The fabric piece cut in GSM Cutter can be mounted on this machine for direct reading as ‘GSM ‘.
Also can be used for multipurpose weighing options up to 300 grams in 0.01 grams sensitivity.
Can read results in grams, ozs, carrots etc. Also can cover “piece counting options”.
The instrument is repairable and recaliberatable.
Adoptor or battery interfaced.
Option of pocket weighing balance is also available.
Net weight :2.5kg
Dimension : length×depth×height=12”×10”×10”
Peel Bond Strength Tester
Needle detector machine – table top
Our Bond strength tester is handy instrument to measure bonding strength of any textile / coated material. Example : Bond strength of fusing interlining with base fabric can be measured or bond strength in coated / laminated fabric can be measured.
Good Instrument to measure efficiency of fusing machine / laminating or coated machine.
Max capacity – 3kg, Accuracy – 25 gms.
Digital Handy model and fixed floor model are also available. Long Gripper is provided to hold the test specimen accurately.
To measure temprature inside any running machine or instrument
High Volume Instrument
For combined testing of fibre length, strength, micronaire, maturity, color, moisture, trash

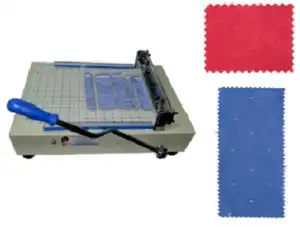

Zig-Zag swatch cutting machine -Manual 12``
To prepare fabric samples of Zig – zag shape for presntation in pre- determined size

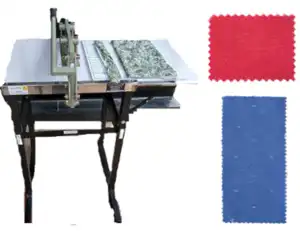

Zig-Zag swatch cutting machine -Manual 16``
To prepare fabric samples of Zig – zag shape for presntation in pre- determined size

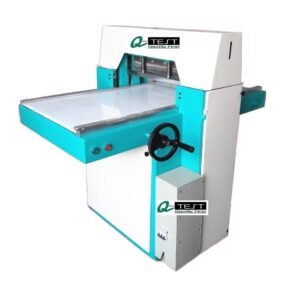

Zig-Zag swatch cutting machine -Motorised Model 16``
To prepare fabric samples of Zig – zag shape for presntation in pre- determined size

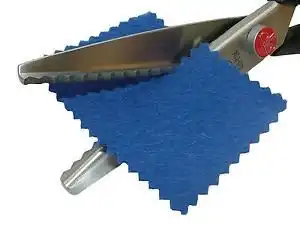

Zig-Zag pinking scissors
To prepare fabric samples of Zig – zag shape for presntation in pre- determined size
Elastic Testing Equipments
- Colour Matching Cabinet
- Grey Scale
- Spectrophotometer
- Colour matching standard lamps
- Washing fastness tester
- Grey scale for color change
- Crockmeter Manual
- Crockmeter Digital
- Grey scale for staining
- Perspirometer
- MBTL Light Fastness Tester
- Blue wool standard
- Grey Scale
- Fabric extensiometer
- Single Yarn Strength & Elongation tester
- Digital Model
- Computerized Model
Colour Matching Cabinet
Purpose:
- Actual colour of fabric / yarn / paper / button / lining / paint test specimen can be compared with original specimen under different standard.
Features
- This is an important equipment of textile industry and is suitable for almost all applications that require colour consistency and quality.
- Colour matching cabinet is the equipment designed for the visual evaluation of shade and colour differences under standardized and controlled lighting conditions.
- It is ergonomically designed and consist of light source like D65, TL84, INCA, UV, CWF.
- Interior paint with Munsell as per International Standards or Sun mica wood of standard colour.
- Easy to handle as each light can be operated separately with buttons individually.
- Supplied with 45-degree angle table for viewing fabrics/yarns/sewing thread without any distractions.
- Supplied with German hour meter for measuring usage of light sources.
- Other light sources like TL83 (H & M), U30, D75 can be supplied optionally.
Related Standards
- ISO 3664, BS 950, DIN 6173, ASTM D 1729, JIS Z 8723

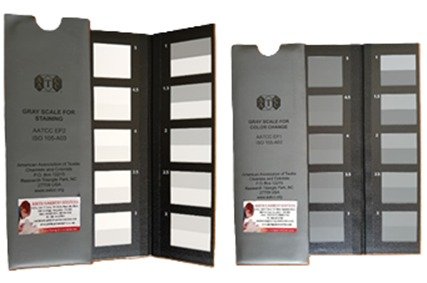

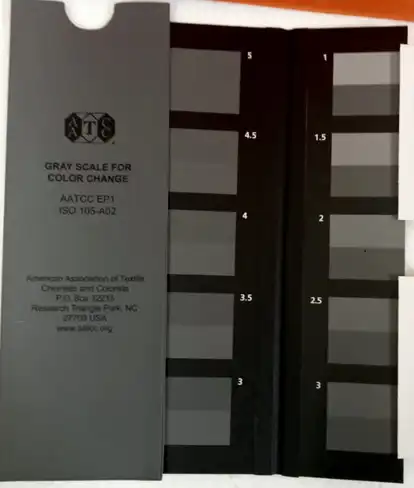

Grey Scale
Comes in ISO standard (from S.D.C UK) and American standard from AATCC – USA.
Helps grading the tested specimen after conducting the rubbing test (grey scale for staining) and wash fastness test (grey scale for colour change).
Also used for colour matching with original specimen (grey scale for colour change ).
Grading of 1 up to 5 can be done.

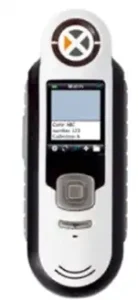

Spectrophotometer
Color matching and measurement

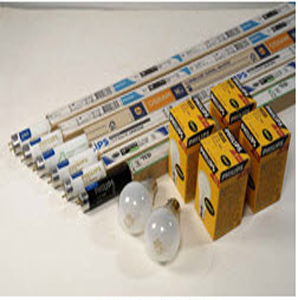

Colour matching standard lamps
We offer various standard lamps from Philips/GE/Macbeth/verivide for color matching in textiles like fibre/yarn/fabric/garment and any kind of garment accessories.These lamps meet CIE specifications and offer lux levels and CRI index as per standards.
Lamps offered are :
D75: A bluish colored light source originally used for grading cotton & their evaluation applications. It offers 7500K.
D65: A light bluish colored light source used in color matching applications of paints,textiles,raw inks and other manufactured products. It offers 6500K.
D50: A near white light source used in the evaluation of graphic arts and imaging applications. It offers 5000K.
Ultra violet: Light energy not normally visible to human eye, but which is present in natural daylight.
Cool White Fluorescent (CWF) – A wide band single phosphor fluorescent source commonly used in commercial lighting applications . It is characterized by emitting high amounts of green energy, with a color temperature of approximately 4100K. It has a CRI or approximately 62.
TL84 – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of green energy, with a color temperature of approximately 4100K. It has a CRI of approximately 86.
TL830 – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of yellowish red energy, with a color temperature of approximately 3000K. It has a CRI of approximately 86.
Ultralume 30 (U30 or 30U) – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of yellowish red energy with a color temperature of approximately 3000K. It has a CRI of approximately 85.
Ultralume 35 (U35 or 35U) – A narrow band tri-phosphor fluorescent source originally designed for commercial lighting applications . It is characterized by emitting high amounts of reddish yellow energy with a color temperature of approximately 3500K. It has a CRI of approximately 85.
Illuminant A – is a standardized illuminant described in the international standard, CIE Publication 15.2 and specified for use in color matching applications in ASTM D1729-96.It offers 2865 K
Horizon – Reddish in color source described in older specification and used for color matching applications.It offers 2300K.
Washing fastness tester
Color fastness of elastic to washing/dry cleaning

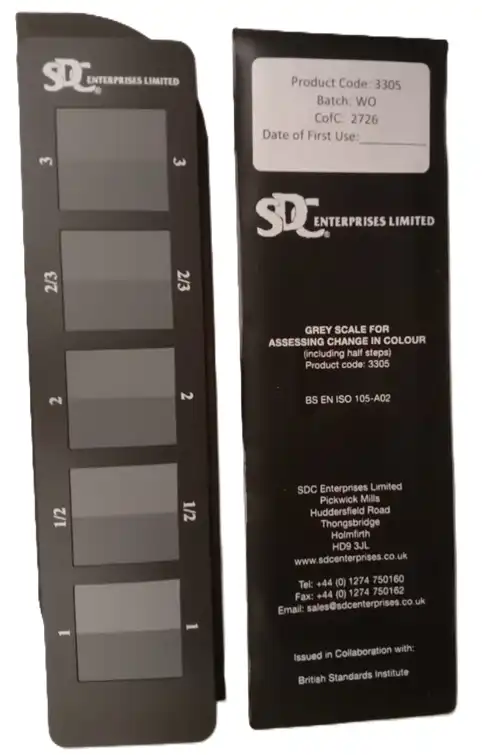

Grey scale for color change
Color fastness of elastic to washing/dry cleaning

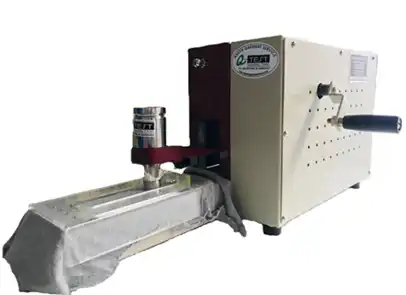

Crockmeter Manual
Amith Garments CROCKMETER MANUAL is used to evaluate color fastness to Wet & Dry rubbing with strict adherence to ISO & AATCC Standards. It is very useful for Textile Colleges, Mill, & export house Labs.
Product Details
Amith Garments Crockmeter is completely made of mild steel duly painted. It provides 9 N load on 16 mm finger. Stroke length is 104±3 mm. All parts are meticulously designed and precisely Engineered for flawless performance & long life. Mechanical type stroke counter is provided for counting the strokes. It is supplied with all accessories.
Technical Specifications:
Stroke Length: 104±3 mm
Finger Diameter: 16 mm
Load On finger: 9 N±0.2N
Stroke Counter: Mechanical Type
Special features:
Manual Crockmeter as per ISO & AATCC.
Analog stroke counter for counting the revolutions.
Stroke length 104±3mm & load on finger 9 N±0.2N
U shape metal specimen Holder for easy gripping samples.
Special finger clip for easy fixing the crocking cloth.
Standard abrasive paper (No 320 ) for accurate test result.

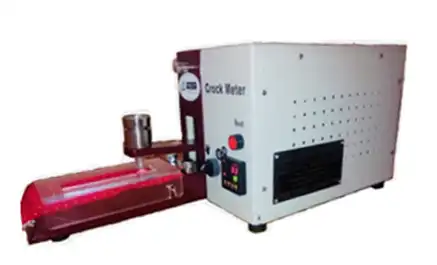

Crockmeter Digital
Amith garments CROCKMETER (MOTORIZED) is used to evaluate color fastness to Wet & Dry rubbing with strict adherence to ISO & AATCC Standards. It is very useful for Textile Colleges, Mill, & export house Labs.
Product Details
Amith Garments Crockmeter is completely made of mild steel duly painted. It provides 9 N load on 16 mm finger. Stroke length is 104±3 mm. All parts are meticulously designed and precisely engineered for flawless performance & long life. Digital Re-settable stroke counter is provided for counting the strokes. It is supplied with all accessories.
Technical Specifications:
Stroke Length: 104±3 mm
Finger Diameter: 16 mm
Load On finger: 9 N
Stroke Counter: Digital
Special features:
Latest design economical rubbing fastness tester.
Digitally controlled motorized tester.
Digital re-settable counter for counting no of strokes.
Dual specimen holder for loose fabrics and garments.
Standard stroke length 104±3 mm which meet both ISO & AATCC Standards.

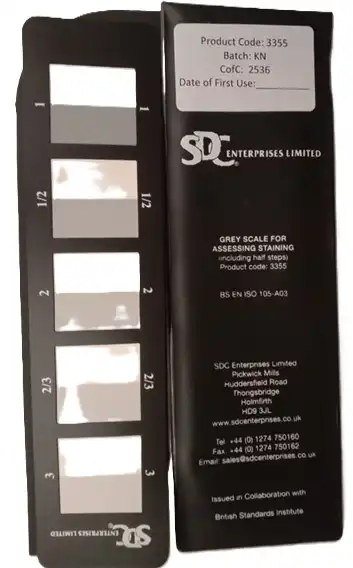

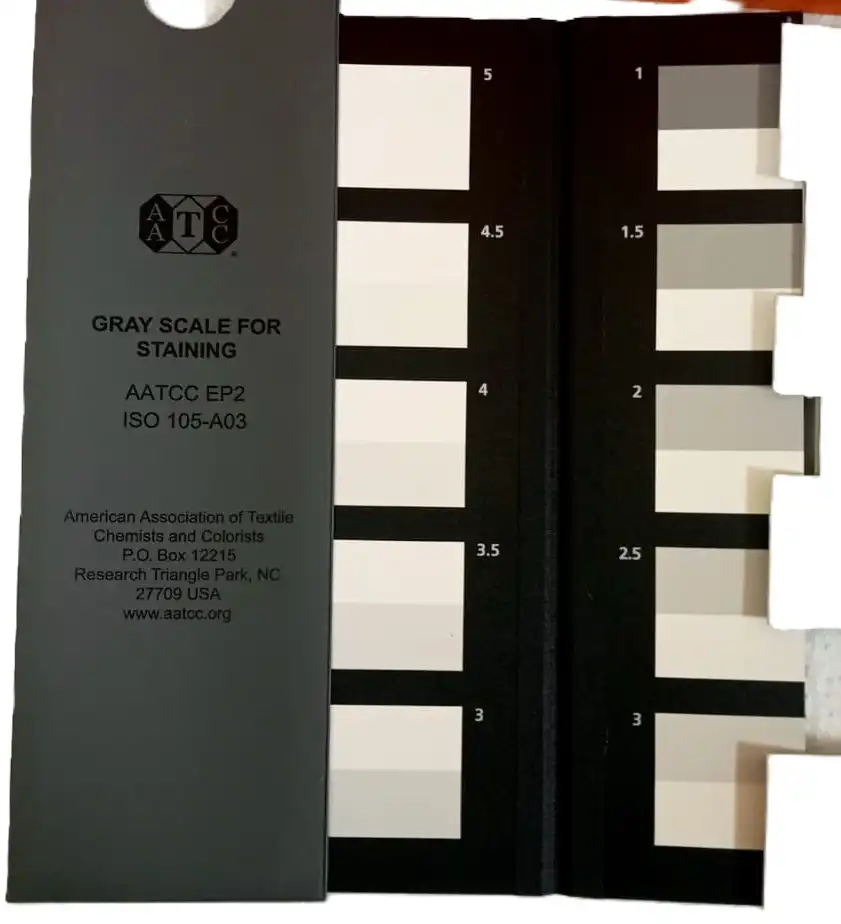

Grey scale for staining
Color fastness of elastic to rubbing
Perspirometer
Amith Garments Perspirometer is a used to evaluate colour fastness to perspiration & water or sea water.
To assess colour fastness of textile fabric against perspiration or colour fastness against water.
Achieved by exposing specimen samples to action of both alkaline and acidic reagents.
Two separate units one for alkaline and other for acidic conditions provided at extra costs.
Perspiration test chemicals supplied along with instrument.
For AATCC 3.63 kg dead weight or for ISO 4.13 kg dead weight is provided.
2 plates of total 910 grams is provided for loading.
Sodium chloride GR , Sodium di hydrogen ortho phosphate,sodium hydroxide flakes,di sodium hydrogen ortho phosphate,L-histidiene besides beakers/blotting paper/standard adjacent fabric supplied.
Net weight :8.3 kg
Net dimension :10”×3.5”×7.5”.
21 acrylic plates for sample holder is also provided each of 115mm*60mm*1.5mm thickness.(Option available to supply perspiration kit which contains all chemicals 7 accessories to conduct perspiration tests against ISO/AATCC standards).
MBTL Light Fastness Tester
Technical Details :
Light Source :500W, MBTL Fading Lamp (Mercury Blinded Tungsten Lamp)
Test Chamber Temperature:Ambient to 50OC
Temperature Range Control:By Water Circulation in Type ‘A’ Rectangular Cells
Type ‘A’ Rectangular Cells:03 Nos. supplied
Maximum Number of Tupe:50 Nos.
C’ Cylindrical Cells
Specimen Thickness :Up to 15mm
Specimen Size:100 X 50mm
Maximum Number of Specimen:10 Nos.
In the ‘A’ Rectangular Cells
Working Life of Lamps:2000Hours
Power:220Volts
Power Consumption:Maximum 1KW
Water:Use of Distilled Water only in the water Circulation Unit.
Light Fastness Tester is supplied complete with below Accessories :
Main Unit :01 No.
MBTL Fading Lamp (Mercury Blended Tungsten Lamp):1 No.
Type ‘A’ Rectangular Cells :03 Nos.
Spring Mounted Cradles for Type ‘A’ Rectangular Cells:03 Nos.
Specimen Card to prepare sample for testing (Pack of 18 cards):01 Pack
Double Slot Mask (2/3 area exposed) – For Method- :03 Nos.
Type ‘C’ Cylindrical Cells :50 Nos.
Unit to Pull Sample Holder Tray from Rectangular Cells :03 Nos
Flexible Tubing (Small) – For connecting Type ‘A’ Cells : 06 Nos.
Flexible Tubing (Big) – For connecting the Water Circulation Unit :02 Nos.
Stainless Steel Clamps :12 Nos.

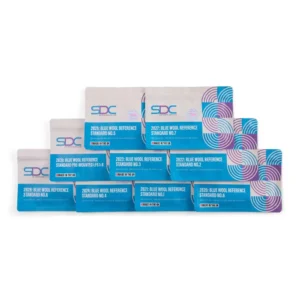

Blue wool standard
Color fastness of elastic to light
Grey Scale
Comes in ISO standard (from S.D.C UK) and American standard from AATCC – USA.
Helps grading the tested specimen after conducting the rubbing test (grey scale for staining) and wash fastness test (grey scale for colour change).
Also used for colour matching with original specimen (grey scale for colour change ).
Grading of 1 up to 5 can be done.
Fabric extensiometer
Purpose:
Used for determining the extension and Recovery Properties of Woven and Knitted fabrics.
Features
- Determine the stretch and recovery (elasticity) of textile fabrics (knitted and woven), where extension at break is not required.
- Table top, simple and economical.
- Easy to use manual operation.
- Self-aligning flat faced stainless steel clamps with PU grips for better gripping.
- Sturdy loading frame fitted with screw tensioning device.
- Calibrated dead weights for accurate loading; specimen template for quick sample preparation.
Related Standards
- BS 4294;
Single Yarn Strength & Elongation tester
To assess fabric gsm and fabric weight
Digital Model
To assess fabric gsm and fabric weight
Computerized Model
To assess fabric gsm and fabric weight
Footwear Testing Instruments
| Instruments |
|---|
Compression Set Apparatus |
Flex Tester a. Belt Flex Tester b. Bennewart Flex Tester c. Flexing Endurance Tster for Knee Boot Uppers d. Flexometer e. Ross Flex Tester f. Shoe Flex Tester g. Vamp Flex Tester |
|
|
|
|
|
|
|
|
Specific Gravity Balances a. Range 0.9 to 3.0 b. Range 0.2 to 2.0 c. Range 0.05 to 0.7 d. Range 0.02 to 0.5 |
|
Spectrophotometer |
Leather Testing Instruments
| Instruments |
|---|
|
|
a. Crockmeter b. Heat Resistance Tester c. Rub Proofness Tester |
|
|
|
|
|
a. For Gloving Leather b. For sole Leather (Permeometer) c. For upper Leather (Penetrometer) d. Spray Tester |
|
|
|
|
|
a. Crackiness Tester b. Folding Tester |
|
Spectrophotometer Colour matching standard lamps |
Paper, Paper Board And Cartons Testing Equipments
| Instruments |
|---|
|
GSM cutter- New model GSM Cutter 38mm,60mm,113mm GSM weighing Balance |
|
Thickness Gauge-Digital model |
Grey Scale Spectrophotometer Colour matching standard lamps |
|
|
|
Tearing Strength Tester |
|
Humidity Chamber |
|
Tensile strength tester Digital model Computerised model |
Water Vapour Permeability Tester |
Compression Strength Tester for transport packages |
Drop Tester for transport packages |
a. MIT Folding Tester b. Schopper Folding Tester |
Sizing Tester (Cobb Apparatus) |
INK Rub Tester |
Cobb Tester |
Ply Bond Tester |
Carpet Testing /Home Furnishing Testing Equipments
| Instruments |
|---|
|
|
|
|
|
|
Thickness Gauge – analog model Thickness Gauge-Digital model |
|
Impact Resilience Tester (Vertical Re-bound Type) |
Tensile strength tester Digital model Computerised model |
|
|
|
|
Oscillating Disc Rheometer(ODR) Computerized Model (With window based software CD, Branded PC Color Printer) |
Moving Die Rheometer (MDR) computerized Model (With window based software CD, Branded PC, Color Printer |
Compressibilty & Recovery Tester for (ASTM F – 36) |
Dynamic Loading Tester |
Flammability Tester |
Static Loading Tester |
Tetrapod Walker |
Tuft Withdrawal Tester |
Martindale abrasion and pilling tester |
Crockmeter Manual Crockmeter digital Grey scale for staining |
Performance Testing |
Colour Matching Cabinet Grey scale Spectrophotometer Colour matching standard lamps |
Zipper Testing Instruments
| Instruments |
|---|
|
Color Fastness Tester |
|
|
|
Colour Matching Cabinet Grey Scale Spectrophotometer Colour matching standard lamps |
Security Strength |
Mattresses Testing Equipments
| Instruments |
|---|
Flexing Machine. |
Indentation Hardness Tester. |
|
|
|
|
|
|
|
|
Coated Fabrics Testing Equipments
| Instruments |
|---|
Bursting Strength Tester |
Flammability Tester |
GSM Balance |
Hot Air Oven |
Humidity Chamber |
Tensile Testing Machine |
Thickness Gauge |
Color Fastness Tester a. MIT Folding Tester b. Schopper Folding Tester |
Crush Resistance Tester |
Flat Loop Flexibility Tester |
Flexing Testers a. De Mattia Flex Tester b. Flexometer c. Schildknecht Flex Tester |
Hydrostatic Resistance Tester |
Low Temperature Bending Tester |
Tear Tester (Elmendorf Type) |
Water Penetration Resistance Tester |
Water Vapour Permeability Tester |
Coating Adhesion Tester |
Colour Matching Cabinet Grey Scale Spectrophotometer Colour matching standard lamps |
