What is the bursting strength tester principle?
A bursting strength tester works by clamping a fabric or paper sample over a rubber diaphragm, then applying increasing hydraulic or pneumatic pressure until the diaphragm expands and ruptures the material. The pressure at the point of rupture is recorded as the bursting strength, expressed in kPa or kgf/cm².
If you work in textile manufacturing, garment production, or quality control, you’ve likely come across the term “bursting strength” more than once. It’s one of the most fundamental indicators of how well a fabric or material can withstand pressure before it fails. But what actually happens inside the machine when a sample bursts? Understanding the bursting strength tester principle helps quality managers, lab technicians, and buyers make better decisions about testing accuracy and equipment selection. In this guide, we’ll break down exactly how these instruments work, step by step, covering both hydraulic and pneumatic systems, relevant international standards, and practical tips for getting reliable results. Whether you’re setting up a new testing lab or simply want to understand why your QA team relies on this test, this article walks through the mechanics in plain, practical language.
What is a Bursting Strength Tester?

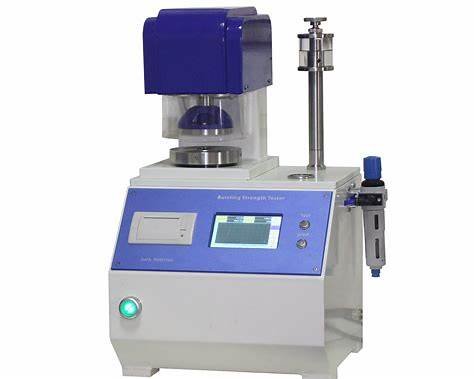

A bursting strength tester is a laboratory instrument used to measure the maximum pressure a material can withstand before it ruptures. It’s widely used across textiles, paper, corrugated board, and packaging industries to evaluate the structural integrity of materials under multidirectional stress. Unlike tensile strength testing, which pulls a sample in one direction, bursting strength testing applies force outward in all directions simultaneously, closely simulating real-world stresses like stretching, impact, or pressure from handling and transport.
Why Bursting Strength Testing Matters
Bursting strength testing isn’t just a lab formality — it directly affects product performance and customer satisfaction. Here’s why manufacturers and exporters take it seriously:
- It predicts how a fabric will behave under stretching, pulling, or impact during actual use.
- It helps identify weak batches before they reach production or shipment.
- It supports compliance with buyer specifications and international export requirements.
- It reduces returns and complaints related to fabric or packaging failure.
- It builds documented quality evidence for audits and certifications.
For garment exporters and packaging suppliers alike, a single failed shipment due to material weakness can be costlier than the testing equipment itself.
Bursting Strength Tester Principle
At its core, the bursting strength tester principle relies on hydrostatic or pneumatic pressure applied against a flexible rubber diaphragm. The test sample is clamped firmly over this diaphragm, and pressure is increased steadily using either hydraulic fluid or compressed air. As pressure builds, the diaphragm stretches upward and pushes against the sample until the material can no longer resist the force and ruptures.
The pressure reading at the exact moment of rupture is captured by a pressure gauge or digital sensor and recorded as the bursting strength value, typically expressed in kPa, kgf/cm², or psi depending on the standard being followed. This value reflects the combined resistance of the material’s fibers, weave, or structure to omnidirectional stress — making it a reliable indicator of overall fabric or board strength.
Working Principle Explained Step-by-Step
- Sample Preparation – A test specimen is cut to the required size and conditioned according to standard atmospheric conditions.
- Clamping – The sample is placed flat over the rubber diaphragm and secured tightly using a circular clamping ring to prevent slippage.
- Pressure Application – Hydraulic fluid or compressed air is introduced beneath the diaphragm at a controlled, steady rate.
- Diaphragm Expansion – As pressure increases, the diaphragm bulges upward, transferring force directly onto the clamped sample.
- Rupture Point – The sample stretches until it can no longer withstand the applied force and bursts.
- Reading Capture – The instrument records the peak pressure at rupture, which is displayed digitally or read from an analog gauge.
- Result Calculation – The bursting strength value is calculated, often alongside the bursting distension (how far the diaphragm stretched before failure).
Components of a Bursting Strength Tester
Every bursting strength tester, regardless of brand or type, shares a few essential components:
- Rubber Diaphragm – The flexible membrane that transmits pressure to the sample.
- Clamping Ring – Holds the specimen securely in place during testing.
- Pressure Source – Hydraulic pump or pneumatic compressor that generates the testing force.
- Pressure Gauge/Sensor – Measures and displays the bursting pressure.
- Control Panel – Allows operators to set test parameters and view results.
- Base Frame – Provides structural stability during high-pressure operation.
How Hydraulic Bursting Strength Testing Works
In hydraulic systems, pressurized fluid — usually glycerine or a similar hydraulic medium — is pumped beneath the rubber diaphragm. The incompressible nature of the fluid allows for very precise, gradual pressure buildup, which is particularly useful when testing thicker fabrics, laminated materials, or leather. Hydraulic testers are known for their high accuracy and are commonly specified in standards like ISO 13938-1 and ASTM D3786 for heavier textile applications.
How Pneumatic Bursting Strength Testing Works
Pneumatic testers use compressed air instead of fluid to expand the diaphragm. This method is generally faster and better suited to lighter fabrics, knitted materials, nonwovens, and paper products. Because air is compressible, pneumatic systems tend to have slightly less precision at very high pressures compared to hydraulic systems, but they offer faster cycle times and easier maintenance, making them popular in high-throughput labs.
Comparison Table: Hydraulic vs Pneumatic Bursting Strength Tester
| Parameter | Hydraulic | Pneumatic |
| Accuracy | Very high, ideal for precise readings | Good, slightly less precise at high pressure |
| Speed | Slower, gradual pressure buildup | Faster test cycles |
| Maintenance | Requires fluid checks and seal maintenance | Lower maintenance, fewer fluid components |
| Best Application | Heavy fabrics, laminates, leather | Lightweight fabrics, nonwovens, paper |
| Cost | Generally higher initial investment | More budget-friendly for high-volume testing |
Testing Standards (ISO 13938, ASTM D3786, BS 4768)
Standardization ensures that bursting strength results are comparable across labs and countries. The most commonly referenced standards include:
- ISO 13938-1 / ISO 13938-2 – Hydraulic and pneumatic methods for determining bursting strength of textile fabrics.
- ASTM D3786 – Standard test method for hydraulic bursting strength of textile fabrics, widely used in the US market.
- BS 4768 – British standard for bursting strength testing, often referenced alongside ISO methods in the UK and Commonwealth markets.
Following the correct standard is essential for export documentation, buyer compliance, and third-party lab certification.
Industries That Use Bursting Strength Testing
Bursting strength testing extends well beyond apparel fabric. It’s a core quality parameter across several industries.
Applications in Textile Industry
In textiles, bursting strength testing is used to evaluate knitted fabrics, technical textiles, medical textiles, and industrial fabrics where multidirectional strength matters more than simple tensile pull. It’s especially important for stretch fabrics, activewear, and elastic materials.
Applications in Paper & Packaging Industry
For corrugated boxes, cartons, and paperboard, bursting strength testing determines how much internal or external pressure packaging can withstand during stacking, handling, and transport — a critical factor for logistics and supply chain reliability.
Comparison Table: Industry Applications
| Industry | Material Tested | Purpose | Recommended Standard |
| Apparel & Fashion | Woven and knitted fabrics | Ensure garment durability under stretch | ISO 13938-1 |
| Technical Textiles | Nonwovens, laminates | Verify structural integrity for specialized use | ASTM D3786 |
| Packaging & Corrugated Board | Cardboard, corrugated fiberboard | Assess resistance to handling and transport stress | TAPPI T810 / ISO 2758 |
| Leather & Upholstery | Leather, coated fabrics | Test resistance to puncture and stretch | BS 4768 |
Factors Affecting Bursting Strength
Several variables can influence bursting strength results, and understanding them helps labs maintain consistency:
- Fiber type and yarn construction
- Fabric weave or knit density
- Moisture content and conditioning
- Sample thickness and layering
- Rate of pressure application
- Calibration accuracy of the diaphragm and gauge
Common Testing Errors
Even experienced technicians can introduce errors that skew results. Watch out for:
- Improper clamping, causing sample slippage before rupture
- Using an incorrectly sized or aged diaphragm
- Inconsistent sample conditioning before testing
- Applying pressure too quickly, affecting reading accuracy
- Skipping regular calibration checks
Tips for Accurate Results
- Always condition samples at standard temperature and humidity before testing.
- Inspect the rubber diaphragm regularly for wear or micro-cracks.
- Calibrate the pressure gauge periodically against a certified reference.
- Maintain a consistent pressure application rate as specified by the chosen standard.
- Test multiple specimens and average results to reduce variability.
How to Select the Right Bursting Strength Tester
Choosing between hydraulic and pneumatic systems — or between manual and digital models — depends on your material type, testing volume, and budget. Heavier textiles and laminates generally call for hydraulic precision, while high-volume labs testing lighter fabrics benefit from pneumatic speed. It’s also worth considering digital readout systems for better data logging and traceability, especially if your lab supports export documentation or third-party audits.
Maintenance Best Practices
Routine maintenance extends the life of a bursting strength tester and protects result accuracy:
- Replace the rubber diaphragm at recommended intervals or at signs of wear.
- Keep hydraulic fluid clean and free of air bubbles in hydraulic models.
- Check pneumatic seals and compressor filters regularly.
- Schedule periodic calibration with a certified service provider.
- Store the instrument in a clean, dry environment away from direct sunlight.
Why Choose a Reliable Textile Testing Equipment Manufacturer
Precision testing depends as much on equipment quality as on operator skill. A well-built bursting strength tester, backed by proper calibration support and genuine spare parts like diaphragms and clamping rings, ensures consistent, standard-compliant results over years of use. Working with an established textile testing equipment manufacturer also means easier access to servicing, technical guidance, and equipment tailored to your specific material range — whether that’s apparel fabric, technical textiles, or packaging board.
Conclusion
Understanding the bursting strength tester principle — from diaphragm expansion to pressure recording — helps quality teams interpret results with confidence and choose the right equipment for their materials. Whether you opt for a hydraulic system for heavier fabrics or a pneumatic model for faster throughput on lighter materials, the underlying goal remains the same: reliable, standard-compliant strength data that protects product quality and brand reputation.
Frequently Asked Questions
Tensile strength measures how much force a material can withstand when pulled in one direction, whereas bursting strength measures resistance to multidirectional pressure applied across the entire sample. Bursting strength testing is particularly important for knitted, stretchable, and nonwoven fabrics because it closely represents real-world stress conditions.
ISO 13938-1 and ISO 13938-2 are the most widely accepted standards for textile testing. ASTM D3786 is commonly used in the United States, BS 4768 in the UK, while ISO 2758 and TAPPI T810 are followed for paper and packaging materials. Always confirm your buyer's testing requirements.
Yes. Many modern bursting strength testers can evaluate textiles, paper, and lightweight packaging materials provided they support the required pressure range and testing standards. Dedicated machines may provide higher accuracy for specialized applications.
The sample is clamped over a rubber diaphragm while hydraulic fluid or compressed air gradually increases pressure until the material bursts. The instrument automatically records the maximum pressure reached before failure.
Hydraulic testers use liquid pressure and are ideal for heavier fabrics requiring high accuracy. Pneumatic testers use compressed air, making them suitable for lightweight materials and faster production testing.
Common testing standards include ISO 13938-1, ISO 13938-2, ASTM D3786, BS 4768, ISO 2758, and TAPPI T810 depending on the product category and export market.
Bursting strength testing helps manufacturers evaluate material durability, maintain quality consistency, comply with buyer specifications, reduce product failures, and satisfy export quality requirements.
Textile mills, garment manufacturers, technical textile producers, hosiery units, paper and packaging industries, leather manufacturers, research institutes, universities, and quality control laboratories all use bursting strength testers.
